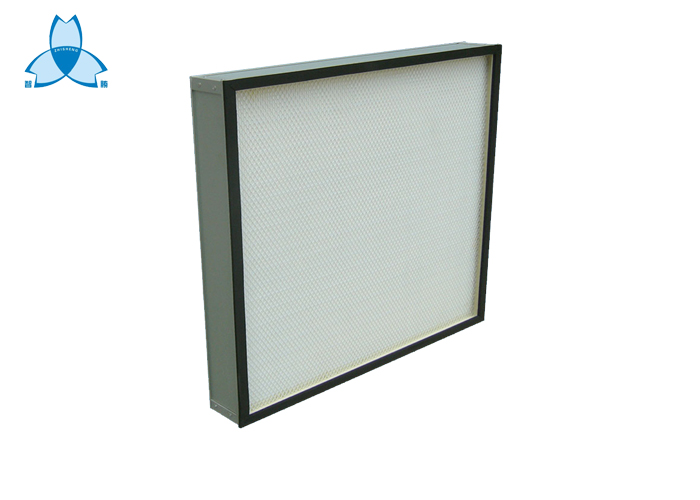

高效无隔板过滤器 Panel HEPA filter
外框:铝合金
Frame: aluminum
滤料:国产超细玻璃纤维滤纸/HV超细玻璃纤维滤纸
Media: Micro fiberglass/HV fiberglass
密封胶:聚氨酯
Sealant: polyurethane
分隔物:热熔胶
Separator: hot-glue
密封条:EVA
Gasket: EVA
保护网:金属网喷涂,白色
Protect mesh: metal mesh with white powder coated
工作温度:≤80℃ Work temperature: ≤80℃
效率:99.97%, 99.99%, 99.999% (MPPS)
用途:洁净室的末端送风口、FFU、洁净工作台、洁净棚等净化设备安装形式广泛用于电子、半导体、制药、食品等行业。
尺寸和规格 Size and specification
型号 Model |
外形尺寸Dimensions(mm) |
额定风量Rated air flow (m³/h) |
初阻力Initial resistance (Pa) |
Efficiency 效率(MPPS) |
ZS-GW305-1 |
305x305x50 |
180 |
≤220(fiberglass) |
≥99.97%-99.995% (H13-H14) |
ZS-GW305-2 |
305x305x69 |
250 |
||
ZS-GW610-1 |
610x610x50 |
700 |
||
ZS-GW610-2 |
610x610x69 |
1000 |
||
ZS-GW915-1 |
915x610x50 |
1100 |
||
ZS-GW915-2 |
915x610x69 |
1500 |
||
ZS-GW1220 |
1220x610x69 |
2000 |
||
ZS-GW305-2 |
305x305x80 |
300 |
||
ZS-GW610-3 |
610x610x80 |
1300 |
||
ZS-GW915-3 |
915x610x80 |
1900 |
||
ZS-GW915-3 |
915x610x90 |
1900 |
注:1. 滤纸可选用美国HV滤纸,初阻力为120pa
2. 除以上尺寸,还可根据客人要求尺寸定做
