单人双吹风淋室

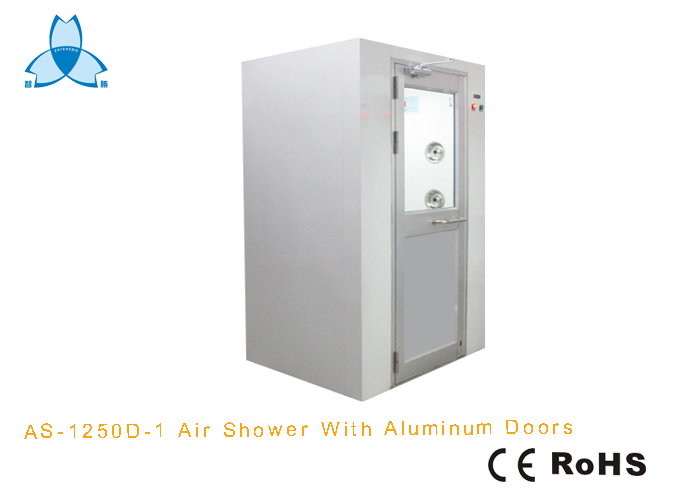

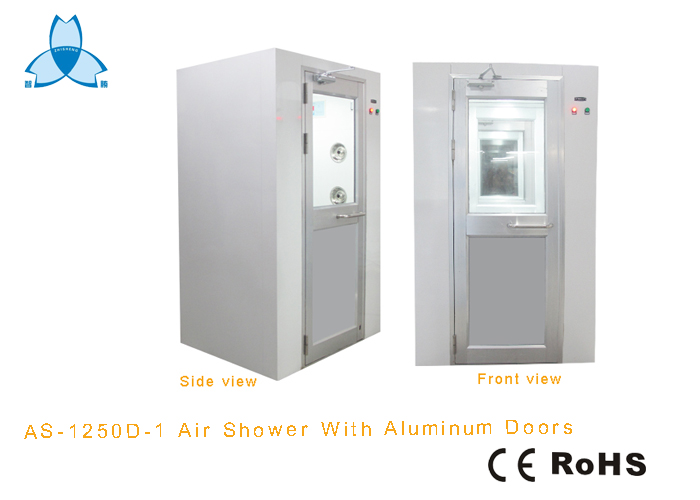

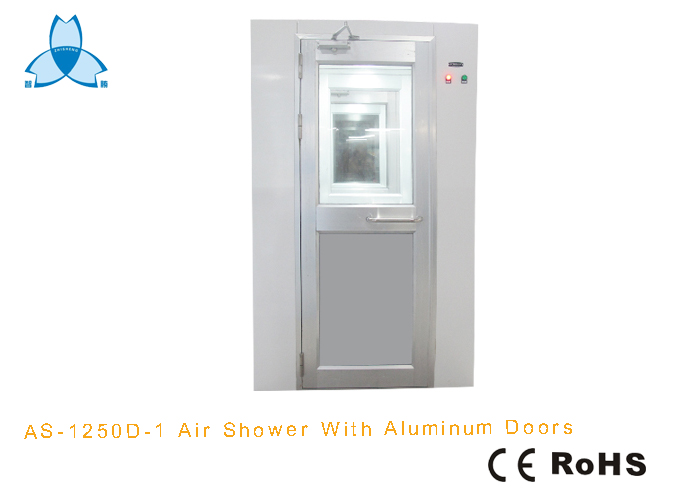

单人双吹风淋室 AS-1250D-1

单人双吹风淋室
产品描述: 单人双吹风淋室AS-1250D-1----材质冷板喷涂，铝合金单开门，单人双吹
在线订购

单人双吹风淋室 AS-1250D-1

外尺寸：W1250xD1000xH2050mm

内尺寸：W800xD900xH1920mm

风淋室Air Shower

描述: 风淋室是人/货进入洁净室所必须的通道，保持洁净室与外界的隔离，进入洁净区的人和货物经高效过滤器后的洁净空气吹淋后，能有效而迅速清除尘埃粒子，我们可以根据洁净区人数多少组装成各种长度的风淋室或者风淋通道。

Description: Air shower is a kind of partial clean equipment which is installed at the place between the clean and non-clean room. It’s used for people and goods to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.We can assembly air showers or passages in different lengths as per the number of people that may enter into the clean room.
吹淋方式：单侧吹，双侧吹和三侧吹

Blowing type: single-side blowing, double-side blowing, three-side blowing.

特点Features:

1. IC智能线路板控制，电子互锁，光电感应自动吹淋。The control system by IC intelligent control panel, blowing automatically by photoelectric sensor, the two doors are electric interlocked.

2. 风淋时间0-99秒可调，出厂初始设置为15秒。Air shower time from 0 to 99 seconds which can be adjustable

3. 采用初、高效两级过滤器系统。Adopt Primary filter and HEPA filter

4. 风速：22-25m/s Spurt speed: 22-25m/s

5. 货淋室无底板 Cargo air shower which is without base.

Optional accessory: 可选配件

1. 自动感应平移门/快速卷帘门Automatic sliding door/high speed shutter door

2. 超高效过滤器 ULPA filter

3. 箱体材质：冷轧板喷涂/不锈钢201/不绣钢304

Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304

4. 杀菌灯/急停开关UV Sterilizer lamp /E-stop switch

5. 离子喷嘴Ion Nozzle

尺寸和参数Size and specification

Model型号	Air shower 风淋室				Cargo Air shower 货淋室
	Air shower 风淋室				Cargo Air shower 货淋室
	AS-1200D-1	AS-1400D-1	AS-1400D-1.5	AS-1400D-2	CAS-1700T-2 (2 Modules)	CAS-1700T-4 (4 Modules)
Outer size 外尺寸WxDxH (MM)	1200x1000x 2050	1400x1000x 2050	1400x1500x 2050	1400x2000x 2050	1800x2000x2050	1800x4000x 2050
Inner size 内尺寸 WxDxH (MM)	800x900x 1920	800x900x 1920	800x1400x 1920	800x1900x 1920	1200x1900x 1920	1200x3900x 1920
Doors门	Swing door/sliding door/shutter door 手开门/自动平移门/高速卷帘门 Door frame: SS/ALU 门框材质：不锈钢/铝合金
Suitable person适合人数	1	1	1-2	2-3	Cart 推车
Nozzles 喷嘴	12(two side)	12(two sides)	18(two sides)	24(two sides)	32(3- side)	64(3- side)
Fan 风机	#4250x1 set	#4195 x 2 sets	#4195x2sets	#4250x2sets	#4195x4sets	#4195x8sets
power(W)功率	1000W	850W	850W	2000W	1700W	3400W
HEPA filter 高效	610x610x69 1pcs	610x610x69 2pcs	610x610x69 2pcs	915x610x69 2 pcs	610x610x69 4pcs	610x610x69 8pcs
Nozzle 喷嘴	ф 25 or 32mm
Voltage 电压	380V/50Hz/3Ph; 220V/50Hz/1Ph
Control system 控制系统	IC intelligent control panel, blowing automatically by photoelectric sensor, the two door are electric interlocked. IC 智能线路板控制，电子互锁，光电感应自动吹淋
